Telia IPTV on Ubiquiti EdgeRouter

Network details

eth0 = internet
eth1 = LAN
eth0.252 = IPTV VLAN
LAN subnet = 192.168.1.0/24


Steps

1. Add new VLAN interface
clip_image001
2. For interface MAC, set MAC of your Inteno router (not sure if this is needed)

clip_image002
3. For interface DHCP / route settings set the values

clip_image003
4. For firewall create address group IPTV for multicast traffic

address-group IPTV
{
address 239.16.116.0/24
address 239.16.117.0/24
description ""
}
5. For firewall, create two rules: IPTV_IN and IPTV_LOCAL, assign to eth0.252/in and eth0.252/local

name IPTV_IN
{
default-action drop
description ""

rule 10
{
action accept
description "Allow established/related"
log disable
protocol all
state
{
established enable
invalid disable
new disable
related enable
}
}

rule 20
{
action accept
description "Allow multicast"
destination {
group {
address-group IPTV
}
}
log disable
protocol udp
}

rule 30
{
action drop
description "Drop invalid state"
log disable
protocol all
state {
established disable
invalid enable
new disable
related disable
}
}
}
name IPTV_LOCAL {
default-action drop
description "WAN to router"

rule 10
{
action accept
description "Allow established/related"
log disable
protocol all
state {
established enable
related enable
}
}

rule 20
{
action accept
description "Allow multicast"
destination {
group {
address-group IPTV
}
}
log disable
protocol udp
source {
}
}

rule 30
{
action accept
description "Allow IGMP"
log disable
protocol igmp
}

rule 40
{
action drop
description "Drop invalid state"
log disable
protocol all
state {
invalid enable
}
}
}

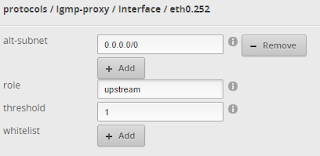

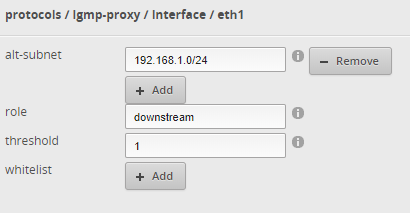

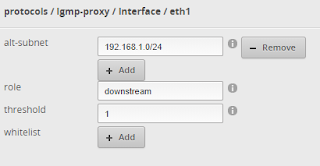

6. Enable protocols -> igmp-proxy and configure for the two interfaces eth1 and eth0.252


7. Done!

Full(ish) config.boot

firewall {
    all-ping enable
    broadcast-ping disable
    group {
        address-group IPTV {
            address 239.16.116.0/24
            address 239.16.117.0/24
            description ""
        }
    }
    ipv6-receive-redirects disable
    ipv6-src-route disable
    ip-src-route disable
    log-martians enable
    name IPTV_IN {
        default-action drop
        description ""
        rule 10 {
            action accept
            description "Allow established/related"
            log disable
            protocol all
            state {
                established enable
                invalid disable
                new disable
                related enable
            }
        }
        rule 20 {
            action accept
            description "Allow multicast"
            destination {
                group {
                    address-group IPTV
                }
            }
            log disable
            protocol udp
        }
        rule 30 {
            action drop
            description "Drop invalid state"
            log disable
            protocol all
            state {
                established disable
                invalid enable
                new disable
                related disable
            }
        }
    }
    name IPTV_LOCAL {
        default-action drop
        description "WAN to router"
        rule 10 {
            action accept
            description "Allow established/related"
            log disable
            protocol all
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action accept
            description "Allow multicast"
            destination {
                group {
                    address-group IPTV
                }
            }
            log disable
            protocol udp
            source {
            }
        }
        rule 30 {
            action accept
            description "Allow IGMP"
            log disable
            protocol igmp
        }
        rule 40 {
            action drop
            description "Drop invalid state"
            log disable
            protocol all
            state {
                invalid enable
            }
        }
    }
    name WAN_IN {
        default-action drop
        description "WAN to internal"
        rule 10 {
            action accept
            description "Allow established/related"
            state {
                established enable
                related enable
            }
        }
        rule 70 {
            action drop
            description "Drop invalid state"
            log enable
            state {
                invalid enable
            }
        }
    }
    name WAN_LOCAL {
        default-action drop
        description "WAN to router"
        rule 10 {
            action accept
            description "Allow established/related"
            state {
                established enable
                related enable
            }
        }
        rule 60 {
            action accept
            description IGMP
            log disable
            protocol igmp
        }
        rule 70 {
            action drop
            description "Drop invalid state"
            state {
                invalid enable
            }
        }
    }
    receive-redirects disable
    send-redirects enable
    source-validation disable
    syn-cookies enable
}
interfaces {
    ethernet eth0 {
        address dhcp
        description WAN
        duplex auto
        firewall {
            in {
                name WAN_IN
            }
            local {
                name WAN_LOCAL
            }
        }
        poe {
            output off
        }
        speed auto
        vif 252 {
            address dhcp
            description IPTV
            dhcp-options {
                default-route no-update
                default-route-distance 210
                name-server no-update
            }
            firewall {
                in {
                    name IPTV_IN
                }
                local {
                    name IPTV_LOCAL
                }
            }
            mac IN:TE:NO:MA:CC:CC
        }
    }
    ethernet eth1 {
        address 192.168.1.1/24
        description LAN
        duplex auto
        poe {
            output off
        }
        speed auto
    }
    ethernet eth2 {
        disable
        duplex auto
        poe {
            output off
        }
        speed auto
    }
    ethernet eth3 {
        disable
        duplex auto
        poe {
            output off
        }
        speed auto
    }
    ethernet eth4 {
        address 192.168.10.1/24
        description Management
        duplex auto
        poe {
            output off
        }
        speed auto
    }
    ethernet eth5 {
        address dhcp
        description SFP
        duplex auto
        speed auto
    }
    loopback lo {
    }
    switch switch0 {
        description Switch0
        mtu 1500
    }
}
port-forward {
    auto-firewall enable
    hairpin-nat disable
    wan-interface eth0
}
protocols {
    igmp-proxy {
        interface eth0 {
            role disabled
            threshold 1
        }
        interface eth0.252 {
            alt-subnet 0.0.0.0/0
            role upstream
            threshold 1
        }
        interface eth1 {
            alt-subnet 192.168.1.0/24
            role downstream
            threshold 1
        }
    }
    static {
    }
}
service {
    dhcp-server {
        disabled false
        hostfile-update disable
        shared-network-name LAN {
            authoritative enable
            subnet 192.168.1.0/24 {
                default-router 192.168.1.1
                dns-server 208.67.222.222
                dns-server 208.67.220.220
                lease 86400
                start 192.168.1.50 {
                    stop 192.168.1.199
                }
            }
        }
        use-dnsmasq disable
    }
    dns {
        forwarding {
            cache-size 150
            listen-on eth1
        }
    }
    gui {
        http-port 80
        https-port 443
        older-ciphers enable
    }
    nat {
        rule 5010 {
            description "masquerade for WAN"
            outbound-interface eth0
            type masquerade
        }
    }
    ssh {
        port 22
        protocol-version v2
    }
    ubnt-discover {
        disable
    }
}
